By accurately measuring the expansion force and thickness change, it provides key data support for battery structure design optimization and reliability evaluation
Application Areas
·Battery charging and discharging process monitoring
·Battery material and structure research and development
·Safety performance verification
·Battery life evaluation

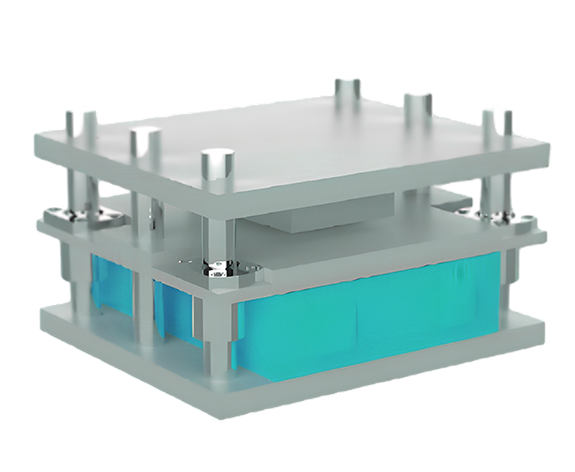

Integrated constant spacing fixture |
Multi-channel adaptation |
High precision mold base design |
Manually adjustable constant gap design |
Smaller volume occupancy |
Simple assembly structure |
Model | PSS100-X | PSS200-X | PSS400-X | |
Suitable products | Soft pack, square battery | |||
Features | Constant gap expansion force of battery cells and modules | Constant gap expansion thickness of battery cells and modules | ||
Pressure Modules | Sensor | Integrated sensor | Split sensor | Displacement Sensors |
Range | 0.5,5t,10t | 200g or customized | ||
Accuracy | ±0.1%F.S. | ±10g | ||
Resolution | 0.1N | 1g | ||
Thickness module | Range | 0-10mm(optional) | 0-10mm | |
Accuracy | ±1μm (optional) | ±1μmor±0.1μm | ||
Resolution | 0.1μm(optional) | 0.1μmor 0.01μm | ||
Communication module | Number of channels | 6CH | 6/16CH | 1~6CH |
Features | ·The software can provide free upgrade and maintenance within limited liability; ·Collect data to form a chart, with the horizontal axis being 'time' and the vertical axis being 'pressure'; ·The software has a shutdown reminder, and can only be closed after the data is saved; ·Unified permissions, distinguishing between administrator and operator permissions; ·Reserve LIMS function interface (data is saved in a designated local folder); | |||
Instrument size | 200*500*1000mm | 350*400*650mm | 2000*1000*2000mm | |
Instrument weight | 260kg | 280kg | 1000kg | |
