We are committed to solving the limitations of constant gap expansion force distortion, inability to simulate multiple pressure conditions, and the need for destructive thickness measurement in traditional fixture testing, and to achieve non-destructive and accurate detection of battery cell expansion force and thickness changes
Application Areas
·Material development evaluation
·Process development evaluation
·Lithium precipitation window evaluation
·Working condition analysis and prediction
Exclusive simultaneous multi-channel |
Ultra-high control accuracy |
One-stop measurement of multiple parameters |
Test efficiency increased by more than 1 times |
Multiple measurement modes available |
Method application costs reduced by 80% |
System Model | Starter Edition | Basic Edition | Premium | Temperature control version | |||||
CSA4150 | CSA4150H | CAA1150 | CAA2150 | CSA1150 | CSA2150 | CSS1150 | CSS2150 | ||
Channel Type | Parallel multi-channel | Single Channel | Synchronous Multi-Channel | Single Channel | Synchronous Multi-Channel | Single Channel | Synchronous Multi-Channel | ||
Number of channels | 4 | 4 | 1 | 2 | 1 | 2 | 1 | 2 | |
Applicable Products | Buckle battery/small soft case | Large soft package/square shell/cylindrical/module, etc. | |||||||
Optional combination module | AC internal resistance test module, AC impedance test module, in-situ pressure module, expansion pressure distribution module | ||||||||
Key Features | Constant pressure | ● | ● | ● | ● | ● | ● | ● | ● |
Constant gap | x | x | ● | ●* | ● | ●* | ● | ●* | |
Absolute thickness | x | x | 0-100mm, 0.0lmm, 1μm (various options available) | ||||||
Relative thickness | 0-10mm, ±1μm, 0.1μm or higher accuracy 0.01μm (H) | 0-10mm,±lum,0.lμm | |||||||
Temperature control | x | x | x | x | x | x | x | x | |
Pressure | Control Mode | Intelligent servo motor | Intelligent servo pneumatic | Intelligent servo motor | |||||
Range | 0.005-0.1t | 0.01-0.5t | 0.01-1t,5t | 0.01-1t,5t | |||||
Accuracy | 0.01N | ±0.3% F.S,1N | |||||||
Temperature and humidity | Range | 0-80°C(Monitor)/20-90%RH | -20~85°C(Control) | ||||||
Accuracy | ±2°C/+3%RH | ±2°C//+3%RH | |||||||
Applicable sample length and width | <240*200mm or other | ||||||||
Charging and discharging equipment | Brands such as Xinwei and Shenghong are available, and customers can also choose their own charging and discharging brands | ||||||||
Software Features | One-button automatic zeroing and calibration, real-time data collection, recording and preview | ||||||||
Mechanism size (L*W*H) | 200*500*1000 | 350*400*65 | 600*400*65 | 350*500*100 | 600*500*100 | 800*1600*180 | 1000*1600*180 | ||
Total system weight | 60kg | 80kg | 120kg | 120kg | 260kg | 400kg | 600kg | ||
The current in-situ expansion fixture is a necessary solution for battery cycle testing, which is mainly used to simulate the constant gap usage state of the battery cell in the module and PACK, but the effectiveness and reliability of the actual effect of the fixture are ignored.

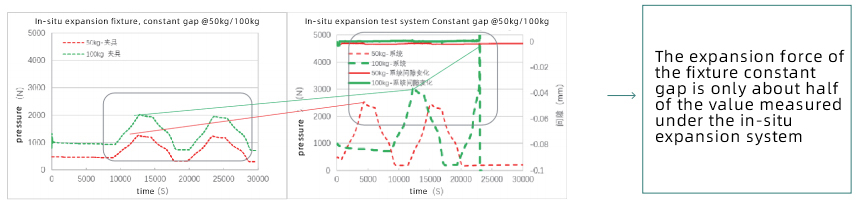

·The constant gap expansion force of the fixture is much smaller than the actual constant gap expansion force value (as shown below);
·It is impossible to obtain the test conditions under different constant pressures;
·The expansion thickness value cannot be directly obtained and needs to be disassembled for destructive measurement;

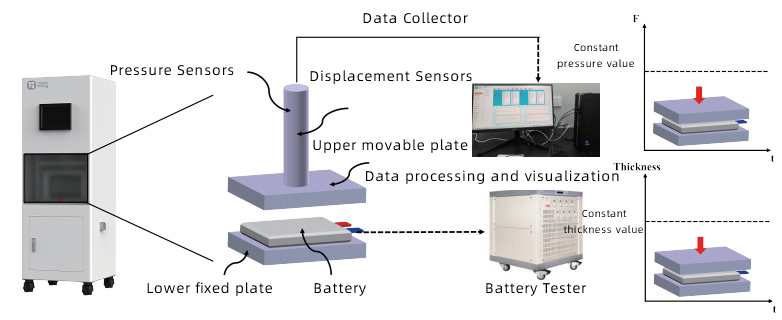

By applying constant pressure or constant gap to the battery cell, using thickness and pressure sensors to monitor the initial thickness, thickness change and pressure change of the battery cell during the charge and discharge cycle, the in-situ test of the battery cell expansion thickness and expansion force can be achieved.

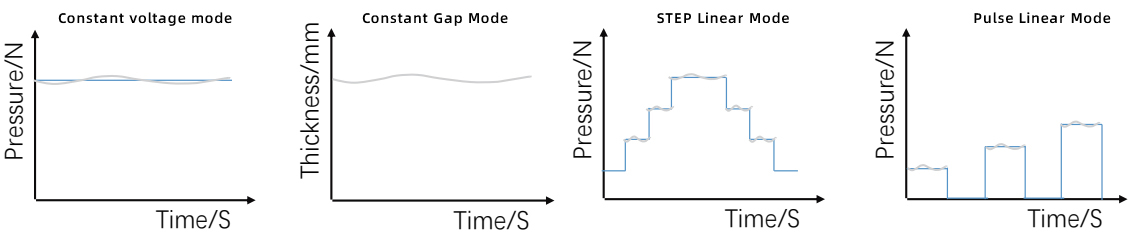

Measurement Mode
·The test system realizes the following functions (similar to battery charging and discharging, CC+CV mode, Step Charge mode);
·Load pressure at different rates to the target pressure, keep the target pressure for a certain time, record the corresponding information, and complete the test;
Industry pioneer Exclusive synchronous multi-channel in-situ expansion measurement system Industry leading companies promote products | All-in-one One-stop collection of expansion force, temperature, humidity, thickness, electrical properties, etc. Maximum resolution 0.1um ±0.5um range accuracy | Fully automatic measurement Fully automatic measurement of all parameters under different conditions MES connection communication (customized) | Professional data processing Constant pressure, constant gap, pulse, mixed mode and working condition simulation are optional |

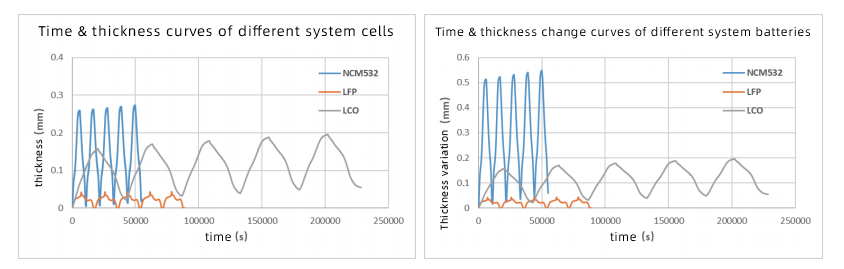

1. Evaluation of different battery systems |
·Battery cell expansion thickness: LFP<NCM532<LCO
·Evaluate the expansion behavior of different system batteries during charging and discharging.

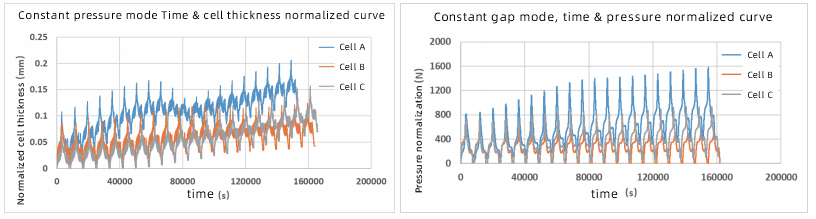

2. Evaluation of the Same Batch of Cells in Different Modes |
·Battery cell expansion thickness: B<C<A; battery cell expansion force: B<C<A
·Evaluate the expansion behavior of the same batch of battery cells during charging and discharging.

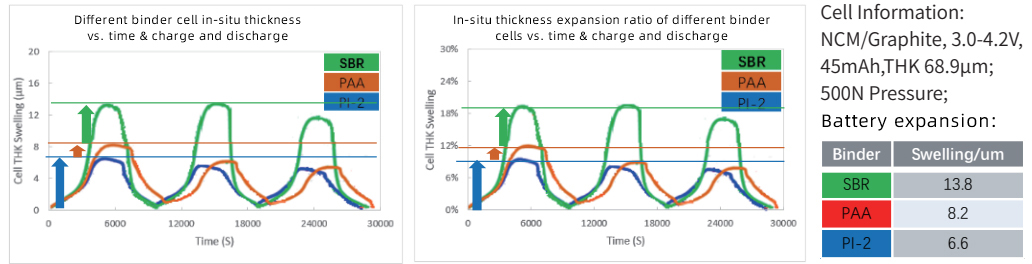

3. Development and evaluation of different Binders |
·Evaluation of the expansion level of cells with different anode binder materials shows obvious differences among the three materials;
·Cell expansion: PI-2<PAA<SBR
·Evaluation of the expansion behavior of different binder materials during the charge and discharge process of the cell.

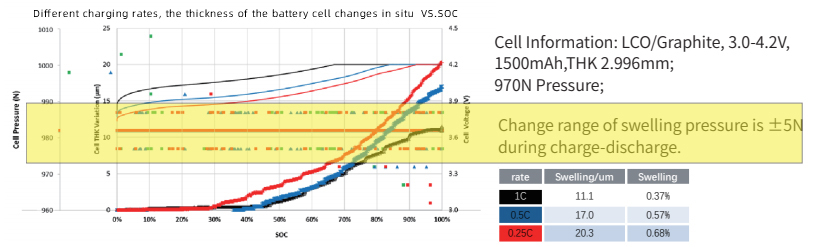

4. In-situ expansion analysis at different magnifications |
· Expansion degree of battery cell: 1C＜0.5C＜0.25C
· Variation range of expansion pressure: ±5N
·Evaluate the impact of different charge and discharge rates on battery cell expansion and understand how to balance the charge and discharge rate and expansion issues.
